PLC Controlled Automatic Roll Former , Metal Floor Deck Roll Forming Machine

Name: PLC Controlled Automatic Roll Former Metal Floor Deck Roll Forming Machine
Brand: BELIEVE INDUSTRY COMPANY
Price: 1 USD

Wholesale PLC Controlled Automatic Roll Former , Metal Floor Deck Roll Forming Machine from china suppliers

Brand Name : BELIEVE INDUSTRY COMPANY

Model Number : BELI 65-220-880

Certification : CE

Place of Origin : CHINA

Payment Terms : 30% TT as deposite, 70% TT before shipping

Delivery Time : 55 to 60 days

Packaging Details : Standard Seaworthy Packing

Applicable Material : Galvanized Steel Coils

Forming Steps : 26 Steps

Main Power : 22kw

Control System : PLC Control System

Other Name : Steel Floor Deck Roll Forming Line

Usage And Function : For steel building construction industry

Contact Now

Automatic Metal Floor Deck Roll Forming Machine With PLC Control System

Brief Description

This metal roll forming machine is used to produce floor decking sheets used as the flooring system for steel constructions. Main material can be roll formed are 0.8-1.5mm thick galvanized steel coils. With PLC control system, whole line is of high automation and easy operation.

Our Advantages

Strict quality control on raw material selecting
Mature Machine Design: over 15 years' experience in machine designing and building
Rollers & Shafts Processing: CNC machining + heat treatment + surface chrome plate
Experienced and professional teams in machine assembling and testing
Machine Delivery: deliver the machine on time
After-sale Serive Team: our technicians have been to more than 50 countries and regions to serve machine

Most Essential Technical Parameters

Material Information
1.	Material To Be Roll Formed	Galvanized steel coils
2.	Material Thickness	0.8-1.5mm ( we also have machine for 2.0mm or 3.0mm thick material)
3.	Feeding Width	According to each profile

Main Technical Parameters
1.	Roller Stations	26 forming stations according to clients' profile
2.	Main Power	22kw
3.	Drive System	chain drive
4.	Control System	PLC control system
5.	Hydraulic Power	5.5kw for cutting
6.	Roller Material	GCr15, heat treatment and surface with chrome plated
7.	Shaft Material	40Cr, heat treatment and surface with chrome plated
8.	Cutting Blade Material	Cr12 Mov, HRC58-62

Steel Floor Deck Machine Layout

PLC Controlled Automatic Roll Former , Metal Floor Deck Roll Forming Machine

1. Machine Components: 5Ton decoiler + roll forming unit + cutting device + final product support table

2. Work Process: decoiling--->feeding & guiding--->roll forming--->cutting--->final product

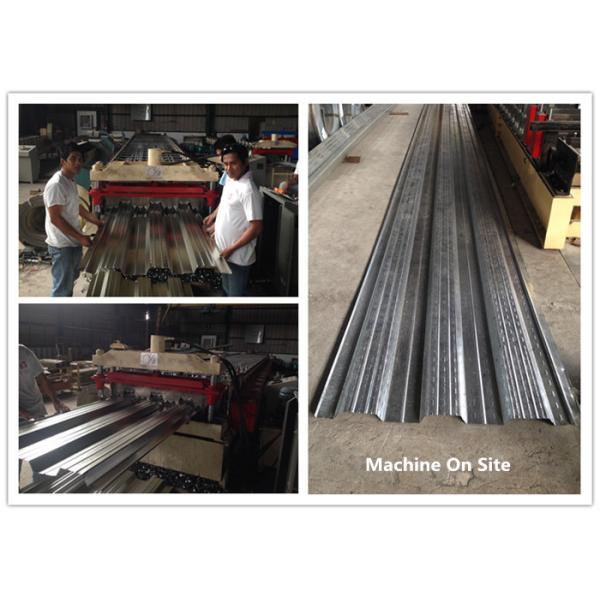

More Machine Pictures For Reference

PLC Controlled Automatic Roll Former , Metal Floor Deck Roll Forming Machine
